RATTMMOTOR Nema23 Stepper Motor 23HS2430B Dual Shaft 57mm×57mm×112mm Stepper Motor 425oz-in 1.8° 3A 4 Lead Wire for CNC Router Milling Engraving Machine
4.6 (92 items)
Limited Time SaleUntil the end
17
34
52
$17.40 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $29.00
Product details
| Management number | 218142513 | Release Date | 2026/05/03 | List Price | $11.60 | Model Number | 218142513 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

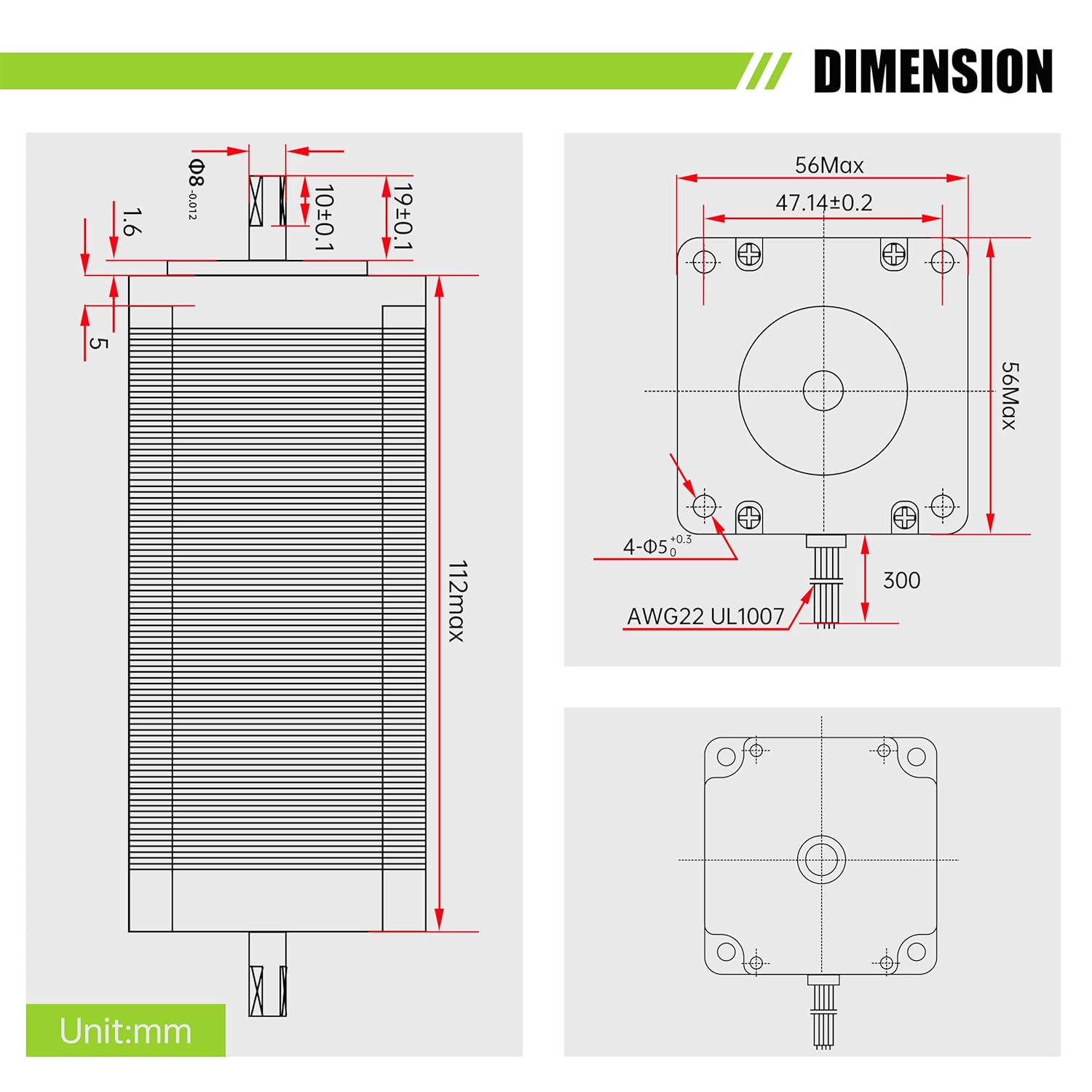

- 【23HS2430B Motor Parameter】Phase: 2 Phase; Step Angle: 1.8 degree; Frame Size: 57 x 57 x 112 mm; Shaft Diameter: 8mm; Holding Torque: 2.8Nm (425oz.in); Phase Resistance: 1.6ohms; Rated Current/phase: 3A; Inductance: 6.8mH+/-20%(1KHz).
- 【Excellent Performance】It has high torque, the stepper motor's power is 15%-20% higher than conventional motors. The circuit board inside the bipolar motor has been updated to ensure the stability of the motor structure and achieve the best uniform rotation.
- 【Advanced Technology】The motor coils are made of pure copper enamelled coils, built by advanced winding technology, with evenly distributed copper wires, not easy to get hot or burn, lower temperature rise of the motor, no deformation and noise for a long time.
- 【High Torque 】High quality motor steel, low self-induced reactance in the bearings, good responsiveness, direct linkage to the load at low speeds at near blocked speeds, without gear reduction.
- 【Low Noise 】The stepper motor is housed in a high strength metal casing, which is robust and durable, with frosted metal side walls for increased friction.
| UPC | 754193411715 |
|---|---|
| Model | 23HS2430B |
| Voltage | 4.8 Volts |
| Brand Name | RATTMMOTOR |
| Horsepower | 1 Horsepower |
| Model Name | 23HS2430B |
| Part Number | 23HS2430B-3P |
| Manufacturer | RTM |
| Material Type | Alloy Steel |
